DZVI系列

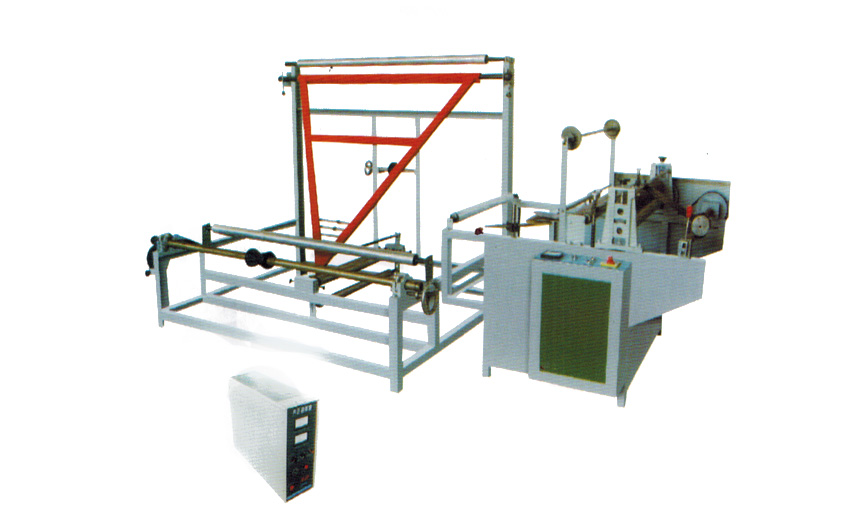

DZVI Series Folder
-
The machine is suitable for folding the plastic film of the sheet into a roll, and is a plastic film package for making a garment bag, a sock bag, a towel bag, a bread bag, a jewelry bag, an underwear bag, a stationery bag, an electrical component bag, a bamboo wood product, and the like. The first step of the bag sealing and cutting machine.。
Configuration:
Host frequency control
Features:
Folded, organ bottom fold, upper tape, upper pearl film
Addable function:
1. Discharge correction 2. Ultrasonic pressure 3. Simple material opening 4. Air rising shaft
| 型號(hào) | Model | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| 收卷寬度 | Max rewinding width | 600mm | 700mm | 800mm | 900mm | 1000mm | 600mm | 600mm |
| 放卷寬度 | Max unwinding width | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm | 1200mm | 1200mm |
| 收卷速度 | Max rewinding speed | 60m/min | 60m/min | 60m/min | 60m/min | 55m/min | 45m/min | 35m/min |
| 總功率 | Motor Power | 2kw | 2kw | 2.5kw | 2.75kw | 3kw | 3.5kw | 4kw |
| 機(jī)器重量 | Weight of machine | 400kg | 450kg | 500kg | 550kg | 650kg | 750kg | 850kg |
| 外形尺寸 | Overall Dimensions（mm） |
1200x1150x1100
|
1200x1250x1100 |
1200x1350x1100 | 1200x1450x1100 | 1200x1550x1100 | 1200x1650x1100 | 1200x1750x1100 |
